Install the agent on Windows

To start monitoring your devices, it is essential to install the DCA and Cloud Connector agent. This installation can be done in two ways: manually or silently.

Warning

If the gateway is used for communication between the agent and the portal, install the Gateway Connector before installing the DCA and Cloud Connector agent.

Instructions

Installing the agent manually

Create the customers where the agents will be installed
Check the installation prerequisites
Download the agent installer:

NDD_DCAandCloudConnector_1.2.11.exe

Run the installed file
Select the desired language and click on Próximo

First, the Microsoft .NET Runtime, Microsoft ASP.NET Core Runtime, EpsonNet SDK for Windows, and PawnIO applications will be installed. If they are already installed, steps 6 through 8 will be skipped, and the installation will proceed from step 9.

Click Next on the prerequisite installation welcome screen
Click Next to start installing the prerequisites
Wait for installation

Once the prerequisites have been installed, the installation of the DCA and Cloud Connector agent will begin.

Click Next on the agent installation welcome screen
Choose the Installation folder and Work folder and click Next
Enter the Provider name and Customer identification key and click Next

Tip

How to find information on the portal:

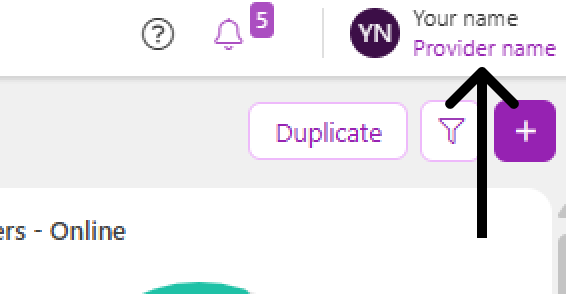

Provider name: in the upper right corner, below your name:

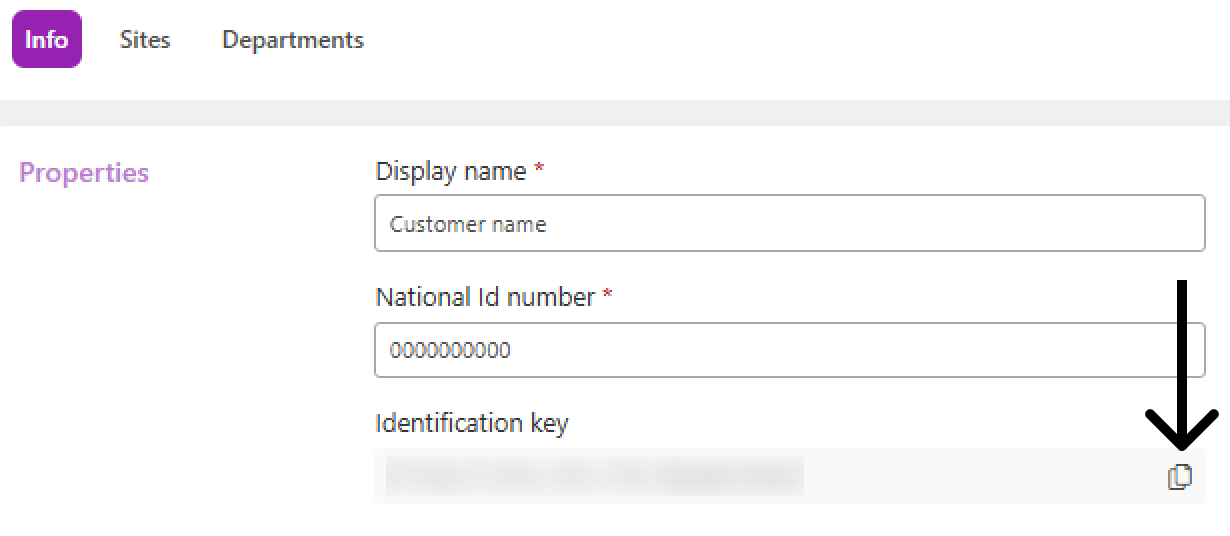

Customer identification key: in the customer properties:

Go to the Administration > Customers menu
Click on the name of the desired customer to open its properties
In the Info tab, copy the Identification key

Under Additional settings, if desired, select the type of communication (proxy or gateway) and click Next
1. If no option is selected, communication will take place directly between the agent and the portal
2. If Use proxy for communication with NDD Orbix servers is selected, enter the necessary proxy connection settings (address, port and authentication, if any) and click Next
3. If Use Gateway Connector to communicate with NDD Orbix servers option is selected, enter the address (IP or hostname) of the computer/server where the Gateway Connector was installed and click Next
  The port will already be filled in with the default, but you can change it if you wish.
Click Install
Wait for installation and click Finish

Next, enable and configure the network printer monitoring service rules.

Install the agent silently

Create the customers where the agents will be installed
Check the installation prerequisites
Download the agent installer:

NDD_DCAandCloudConnector_1.2.11.exe

Run the downloaded file via Command Prompt
1. Navigate to the directory where the agent executable is located via Command Prompt
2. Pass the name of the executable with the other parameters

Example

C:\Downloads\DCA> NDD_DCAandCloudConnector_1.2.11.exe TENANTNAME=Company ORGANIZATIONNAME=00000000-0000-0000-0000-000000000000 /quiet

DCA and Cloud Connector silent installation parameters

The parameters with "*" are mandatory and must be observed.

The parameters with "**" may become mandatory depending on other parameters used.

Warning

The silent installation of DCA and Cloud Connector must be performed using the parameters documented below. The other options displayed in the installer help (/? or /help) should be disregarded.

APPDIR – Configures the installation directory of DCA and Cloud Connector

Setup option: enter the path where you want to install the agent.
Requirement: optional.
Behavior if not configured: installs in the default directory: C:\Program Files (x86)\NDD TECH\DCA and Cloud Connector.
Example: APPDIR=C:\test

WORKFOLDER – Configures the directory of the DCA and Cloud Connector work folder

Setup option: enter the path where you want to create the agent's work folder.
Requirement: optional.
Behavior if not configured: installs in the default directory: C:\NDD TECH\Workfolder.
Example: WORKFOLDER=C:\test

*TENANTNAME – Configures the name of the company registered on the server

Setup option: enter the name of the provider.

Tip

How to find information on the portal:

Provider name: in the upper right corner, below your name:

Requirement: mandatory.
Behavior if not configured: installation will not take place.
Example: TENANTNAME=Company

*ORGANIZATIONNAME – Configures the customer registered on the server

Setup option: enter the customer's identification key.

Tip

How to find information on the portal:

Customer identification key: in the customer properties:

Go to the Administration > Customers menu
Click on the name of the desired customer to open its properties
In the Info tab, copy the Identification key

Requirement: mandatory.
Behavior if not configured: installation will not take place.
Example: ORGANIZATIONNAME=00000000-0000-0000-0000-000000000000

ENABLEPROXY – Enables the use of the proxy

Setup option: checked = enabled.
Requirement: optional (do not use the parameter if you do not want the proxy to be enabled).
Behavior if not configured: proxy will not be enabled.
Example: ENABLEPROXY=checked

**PROXYADDRESS – Configures the proxy server address

Setup option: enter the proxy address.
Requirement: mandatory if proxy use is enabled (ENABLEPROXY=checked).
Behavior if not configured: proxy will not be configured correctly.
Example: PROXYADDRESS=192.168.17.10

**PROXYPORT – Configures the communication port of the proxy server

Setup option: enter the proxy port number.
Requirement: mandatory if proxy use is enabled (ENABLEPROXY=checked).
Behavior if not configured: proxy will not be configured correctly.
Example: PROXYPORT=12

ENABLEGATEWAY - Enables the use of the gateway

Setup option: checked = enabled.
Requirement: optional (do not use the parameter if you do not want the gateway to be enabled).
Behavior if not configured: gateway will not be enabled.
Example: ENABLEGATEWAY=checked

**GATEWAYADDRESS - Configures the gateway address

Setup option: enter the address (IP or hostname) of the computer/server where the Gateway Connector was installed.
Requirement: mandatory if gateway use is enabled (ENABLEGATEWAY=checked).
Behavior if not configured: gateway will not be configured correctly.
Example: GATEWAYADDRESS=192.168.17.10

**GATEWAYPORT - Configures the communication port of the gateway

Setup option: enter the gateway port number.
The default gateway port is 9635, but you can enter another one if you wish.
Requirement: mandatory if gateway use is enabled (ENABLEGATEWAY=checked).
Behavior if not configured: gateway will not be configured correctly.
Example: GATEWAYPORT=12
