Error importing network thermal printer search address file

Failure

When selecting the file for importing physical network address, search by unicast or broadcast addresses of network thermal printers, the following error was displayed:

โ€œAn error occurred in the importation of the file, make sure there are no more columns and if the delimiter is correct (currently we use semicolon).โ€

Cause

The error can be caused by the following reasons:

  1. The addresses are not valid.

  2. The final address is less than the initial address when searching for addresses by unicast.

  3. Columns have been added in addition to those allowed.

  4. There are characters not allowed between the addresses. The allowed characters are:

    • Letters

    • Numbers

    • Dot (.)

    • Colon (:)

    • Semicolon (;)

    • Slash (/)

Solution

To import the addresses correctly, follow the steps below:

  1. Click the + Add button under Physical network addresses, Search by unicast or Broadcast addresses

For the Broadcast addresses option to be available, the search for broadcast addresses must be activated.

  1. Click on the Import CSV option

  2. Download the import template at Download template

  3. Fill in the CSV file with the addresses

Examples:

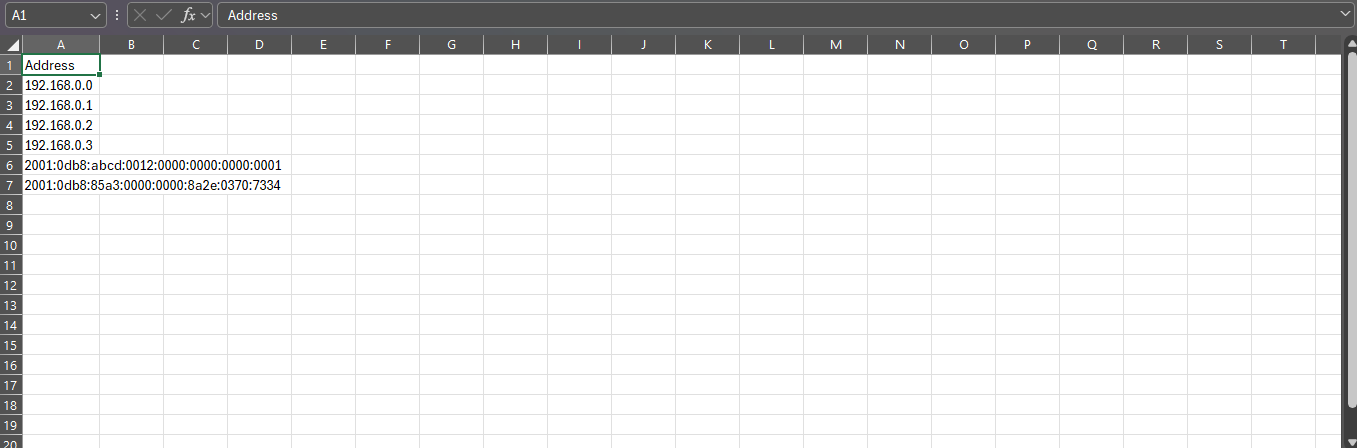

  • Physical network addresses:

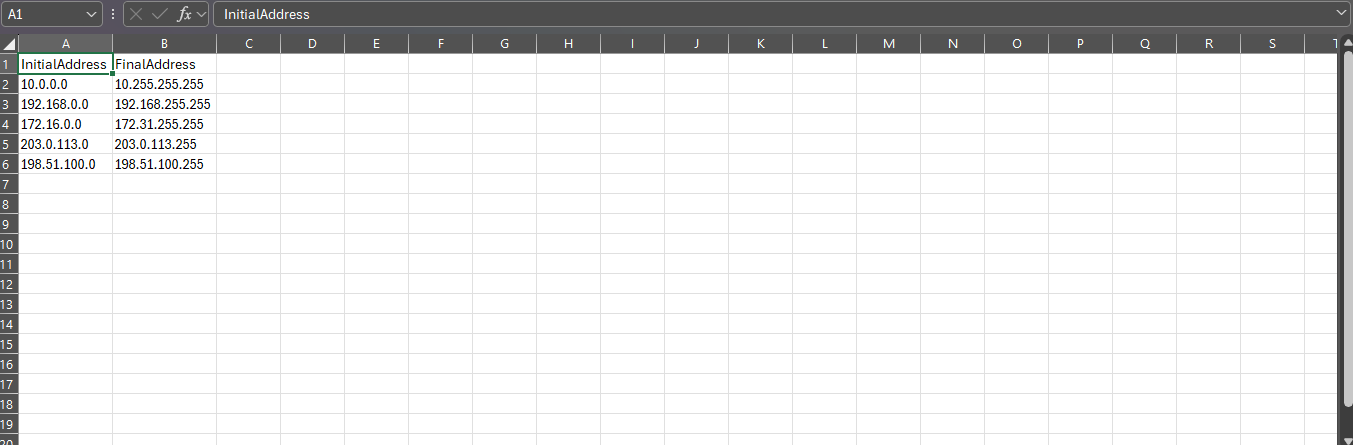

  • Search by unicast:

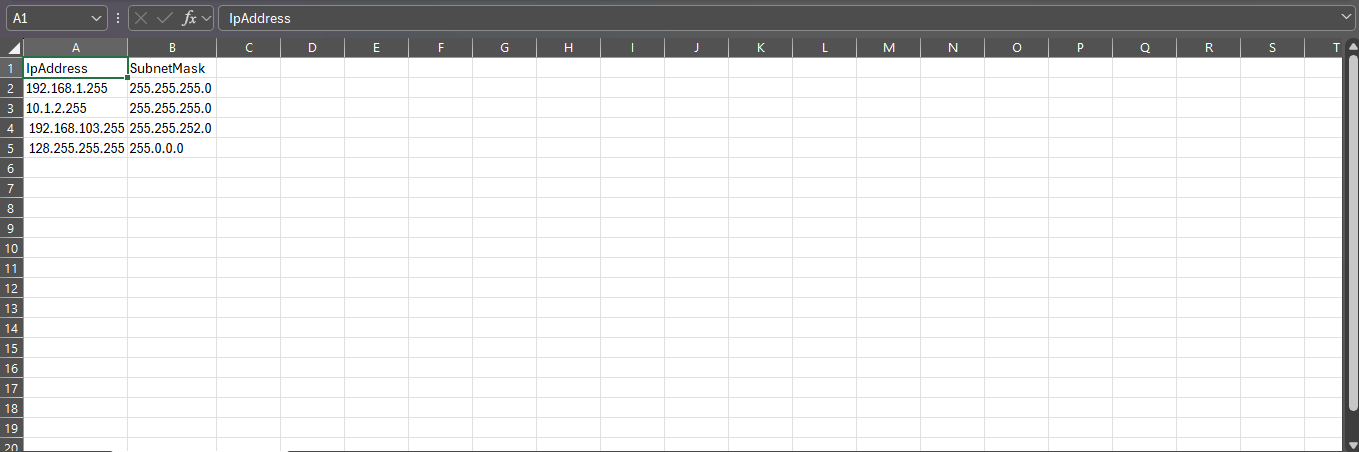

  • Broadcast addresses:

  1. Check in the file that:

    1. The addresses are valid;

    2. If the final address is greater than the initial address, in the case of searching for unicast addresses;

    3. There are no additional columns beyond those allowed;

    4. There are no special characters not allowed in the addresses.

  2. Save the CSV file and select or drag it to the portal

The maximum file size allowed is 100kb.

  1. Click on the Add button to add the addresses and remain on the addition screen or on the Add and Close button to add the addresses and return to the registration

  2. Click the Save button

Following the model provided and performing the checks that may cause errors, the addresses will be imported to the portal correctly.
